Hello World Example

Intro

With the information from the getting started page, we can make a "Hello World" example. We'll read a scenario, add a trigger, some units and edit some terrain and write it back to a new scenario.

This "hello world" example assumes you've installed an editor.
A great editor (IDE) is PyCharm (Download Community Edition))

Step by step

1. Create the scenario

Create an empty scenario in the editor and save it as "hello world"

2. Setup the project

Create a new project and file (in PyCharm). Name the file hello_world.py, and copy the code below into hello_world.py

from AoE2ScenarioParser.scenarios.aoe2_de_scenario import AoE2DEScenario

# The path to your scenario folder
input_folder = "C:/path/to/your/scenario/folder/"

# The scenario object.
scenario = AoE2DEScenario.from_file(input_folder + "hello world.aoe2scenario")

3. Getting the scenario path

1. Go to the "Load Scenario" menu in-game (Single Player Editors)
2. Copy the path that is opened when clicking the "Open Scenario Folder" button (Bottom right)

3. Paste the folder path in the input_folder string

   Folder separators

   If you use \ to separate folders, use 2 per folder (c:\\folder\\folder\\)
   If you use / to separate folders, 1 is enough (c:/folder/folder/)

4. Remember to add a / or \\ at the end of the string too

4. Test if it works

Run the python code by pressing Ctrl+Shift+F10

Executing python code in PyCharm

Ctrl+Shift+F10 executes the current file in PyCharm. More info here.

You should get a console output that looks like this:

Reading file: 'YOUR FILE PATH'
Reading scenario file finished successfully.
############### Attributes ###############
>>> Game version: 'DE'
>>> Scenario version: 1.43
##########################################
Loading scenario structure finished successfully.
Parsing scenario file...
    ✔ FileHeader
    ✔ DataHeader
...

5. Adding a trigger

Now let's add a trigger with a Display Instructions effect that reads "Hello World"

1. Add the following code to hello_world.py

   # Save reference to the manager, so you don't have to do "scenario.trigger_manager..." each time
   trigger_manager = scenario.trigger_manager

   # Save the created trigger
   hello_world_trigger = trigger_manager.add_trigger("Hello World Trigger")
   # Add display_instructions effect to the new trigger
   hello_world_trigger.new_effect.display_instructions(
       display_time=11,
       message="Hello World"
   )


2. Now let's check it out in game. Add the following code:

   scenario.write_to_file(input_folder + "hello world output.aoe2scenario")


   This will save the changes made to the scenario to a new file specified at the given path.

3. Run the python code by pressing Shift+F10 (rerun the last file)

4. You should see something like this at the end of your console:

   ...
       ✔ Triggers
       ✔ Files
   File writing finished successfully.
   File successfully written to: 'YOUR OUTPUT FILE PATH'
   Process finished with exit code 0


5. Check out the "hello world output" scenario in-game and test it!

6. Adding units

1. Remove the scenario.write_to_file(...) line, we'll add it back later

2. Let's add the unit_manager to the script where we added the trigger manager:

   unit_manager = scenario.unit_manager


3. Now let's add the code to add some units to the end of the script:

   unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.MILITIA.ID,              x=15, y=12)
   unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.MAN_AT_ARMS.ID,          x=15, y=13)
   unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.LONG_SWORDSMAN.ID,       x=15, y=14)
   unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.TWO_HANDED_SWORDSMAN.ID, x=15, y=15)
   unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.CHAMPION.ID,             x=15, y=16)


   Take a look at the code, maybe you can see what it does?

4. We add one unit per unit from the militia line to the editor, one per tile.

   Note

   These units are placed using whole numbers (called: integers, x=15, y=12), if you want units to spawn in the middle of a tile, use .5 after the integer, like so: x=15.5, y=12.5

5. You can also see the above code uses PlayerId and UnitInfo objects.

   PlayerId.ONE         # The number representing player one (1)
   UnitInfo.MILITIA.ID  # The number representing a militia unit (74)


   Datasets

   These are datasets, A Dataset is an Enum Class that contains the constants used by the game like unit IDs, etc. These are essential to producing a scenario. Read more about them here.

6. Let's import the datasets using the code below. Add these lines to the top of your file.

   from AoE2ScenarioParser.datasets.players import PlayerId
   from AoE2ScenarioParser.datasets.units import UnitInfo


7. Changing the map

1. And now as final change let's add a hill and change the size of the map. First add the map_manager:

   map_manager = scenario.map_manager


   Place it with the unit_manager and the trigger_manager

2. Now let's add the code for the hill:

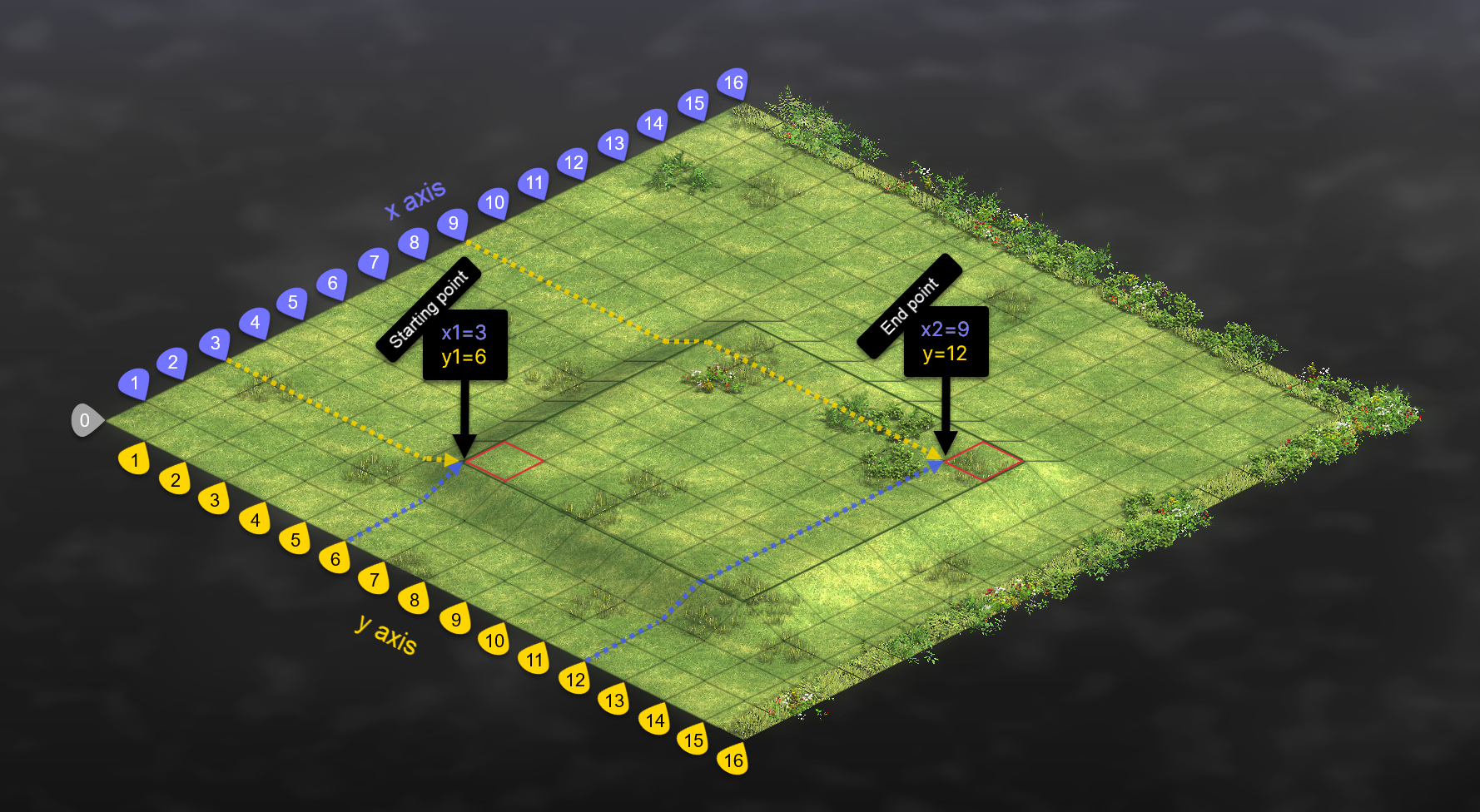

   map_manager.set_elevation(elevation=3, x1=10, y1=10, x2=20, y2=20)


   The in-game max elevation is 7, that's equivelant to elevation=6 in the parser. This is because elevation=0 is elevation 1 in the editor. Using the parser you can go as large as you want, although above ~20 without UHD and ~15 with UHD the camera starts clipping into the hill.

3. And finally let's shrink the map size to 40x40 tiles

   map_manager.map_size = 40


   Max map size limit

   The limit of a scenario is set to the size of a ludikrous map (480x480). Going over this limit will cause the game to crash.

4. Now let's add the writing to file back:

   scenario.write_to_file(input_folder + "hello world output.aoe2scenario")


5. Run the python code by pressing Shift+F10 again and check out the scenario!

Complete code block

Your code should look something like the below block. You can find more examples & explanation on the cheatsheets and the examples page.

from AoE2ScenarioParser.datasets.players import PlayerId
from AoE2ScenarioParser.datasets.units import UnitInfo
from AoE2ScenarioParser.scenarios.aoe2_de_scenario import AoE2DEScenario

# The path to your scenario folder
input_folder = "C:/path/to/your/scenario/folder/"

# The scenario object.
scenario = AoE2DEScenario.from_file(input_folder + "hello world.aoe2scenario")

# Save reference to the manager, so you don't have to do "scenario.trigger_manager..." each time
trigger_manager = scenario.trigger_manager
unit_manager = scenario.unit_manager
map_manager = scenario.map_manager

# Save the created trigger
hello_world_trigger = trigger_manager.add_trigger("Hello World Trigger")
# Add display_instructions effect to the new trigger
hello_world_trigger.new_effect.display_instructions(
    display_time=11,
    message="Hello World"
)

unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.MILITIA.ID,              x=15, y=12)
unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.MAN_AT_ARMS.ID,          x=15, y=13)
unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.LONG_SWORDSMAN.ID,       x=15, y=14)
unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.TWO_HANDED_SWORDSMAN.ID, x=15, y=15)
unit_manager.add_unit(player=PlayerId.ONE, unit_const=UnitInfo.CHAMPION.ID,             x=15, y=16)

map_manager.set_elevation(elevation=3, x1=10, y1=10, x2=20, y2=20)
map_manager.map_size = 40

scenario.write_to_file(input_folder + "hello world output.aoe2scenario")
